COATING GUN

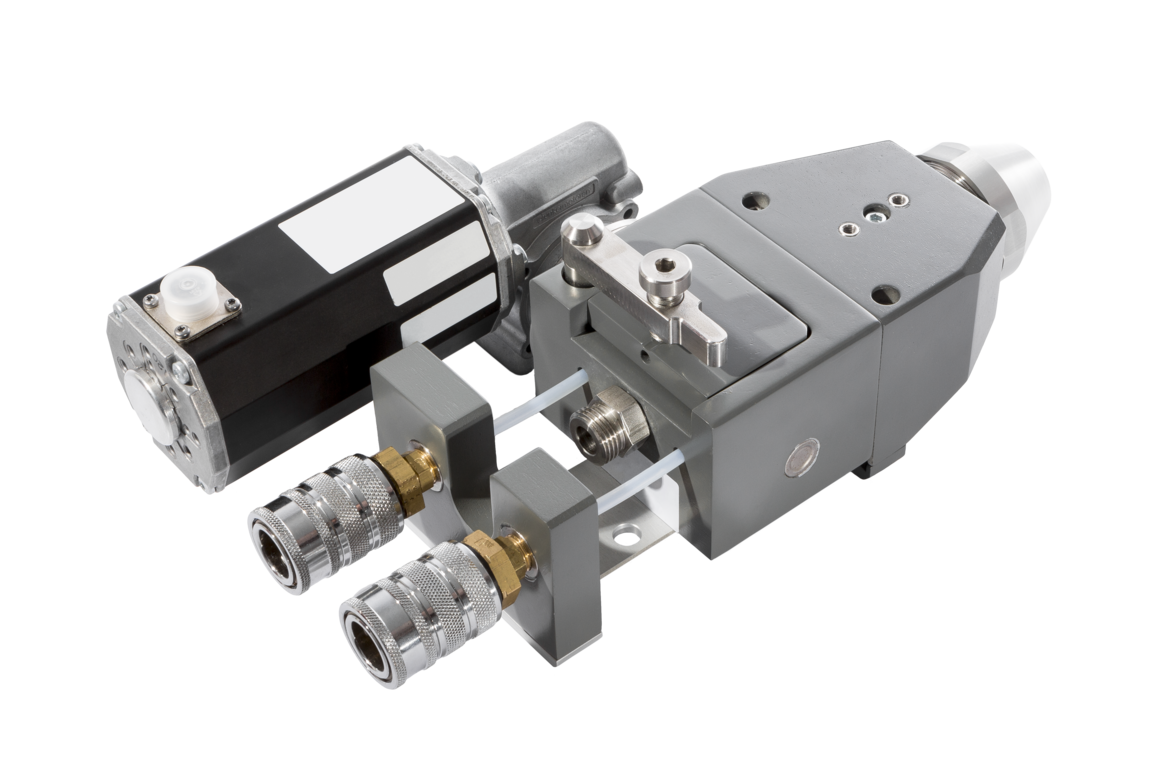

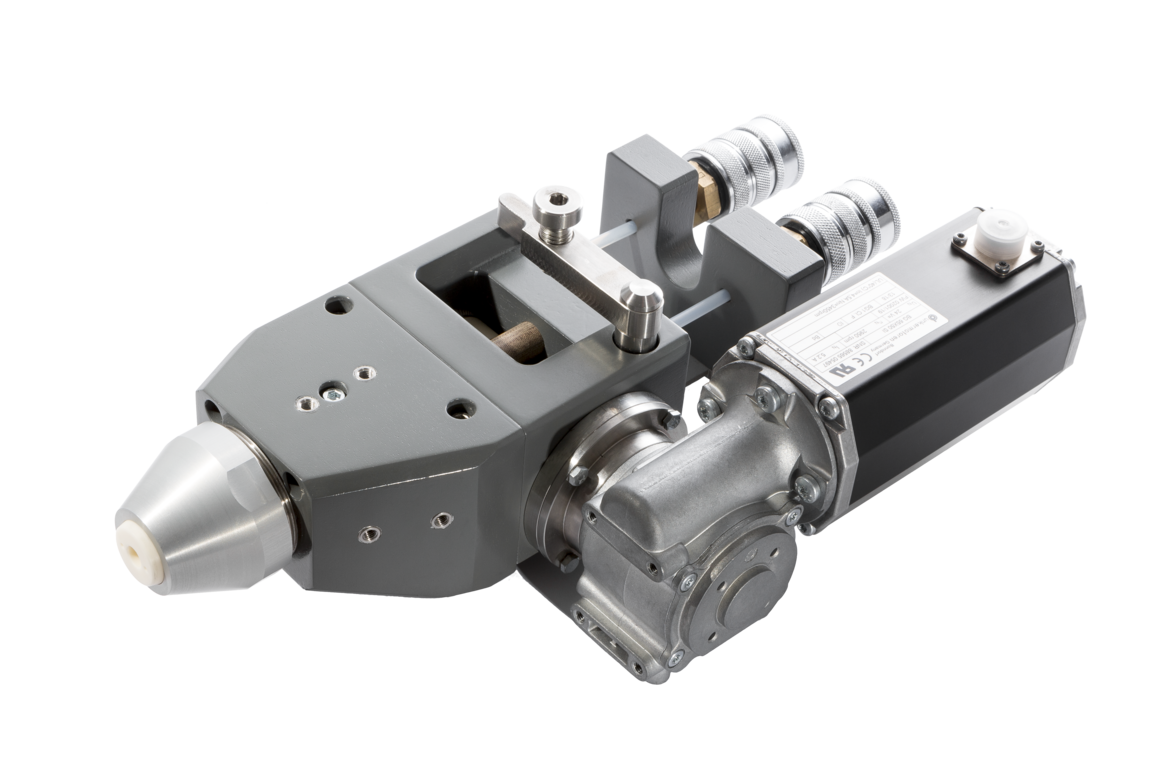

PERFECT jet 400PERFECT jet coating gun comes with an innovative jet nozzle concept to generate straightened atomized air for higher efficiency. Its low wear and consistent electrical contact of wires provides for a smooth spray process. The gun offers superior dependability with a low maintenance concept with highly functional and durable materials used for all components.
Technical data
Spray voltage: 14–60V AC / DC
Spray current: 10–400 A
Spray wire quality: DIN EN ISO 14919
Spray wire diameter (in mm): 1.2, 1.6, 2.0, 2.5 (other diameter on request)
Dimension (in mm): 330 x 100 x 170 (L x D x H)
Weight: 6.5 kg included motor
DC Motor 150W with integrated regulation
Power supply: 24 VDC (20–30VDC)
Continuous current: 2.8 A
Ambient temperature limit: 5–40 °C
